The motion detector adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as a control signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.

Function:

1. Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing way.
2.Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic (Set time) .
3. Time-delay adjustment: it can be set according to your desire. The minimum is 15±5 sec; the maximum is 30±5min.

Specifications:

Power Sourcing: 110V/AC-240V/AC
Detection Distance: 6m max (24°C)
Detection Range: 360°
Power Frequency: 50Hz
Working Temperature: -20~+40°C
Ambient Light: 3-2000LUX (Adjustable)
Working Humidity: less than 93%RH
Time-Delay: min.15sec±5sec Max: 30min±5min
Power Consumption: 0.45W (work)
Rated Load: 1200W (incandescent lamp) 300W (energy-saving lamp)
Detection Motion Speed: 0.6~1.5m/s

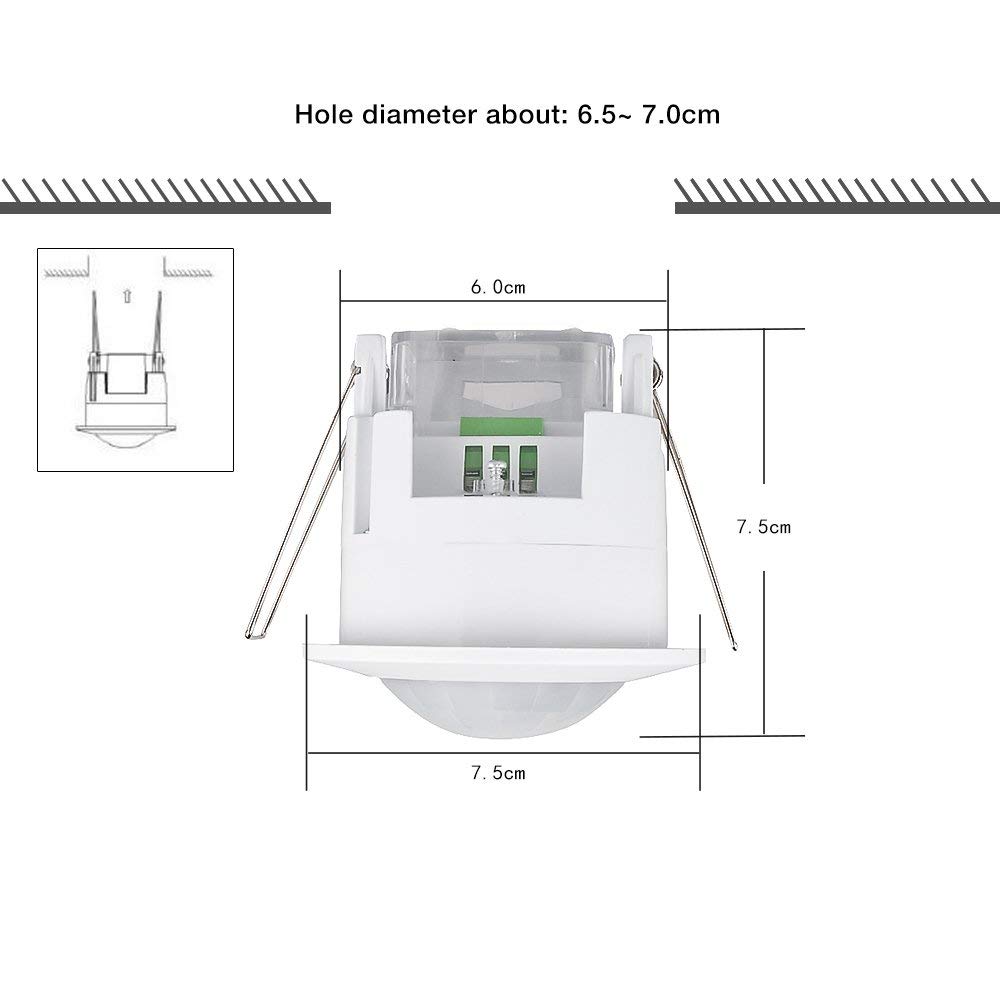

Installing Height: 2.2m~4m

Package Content:
- 1 x Motion Sensor switch

- 1 x User Instruction

Wire way:

110v-240v Infrared Sensor Switch, Ceiling Mounted Occupancy Sensor with Time delay, Light Sensor adjustable

Intelligent in-line ceiling infrared human body sensor switch

110v-240v Infrared Sensor Switch, Ceiling Mounted Occupancy Sensor with Time delay, Light Sensor adjustable
